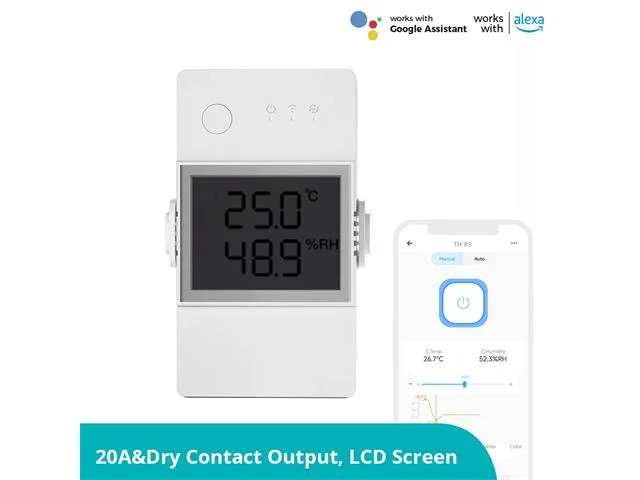

Sonoff TH20 Elite Temp and Humidity Switch

This device is an upgraded version of the TH16, built on the ESP32 chipset for faster performance and enhanced stability. It includes a hot-pluggable RJ9 sensor port, compatible with THS01 (temp & humidity), DS18B20 (waterproof temp), and MS01 (soil moisture) sensors (sold separately).

The TH20 Elite is ideal for smart geyser control, electric floor heating, greenhouses, and aquarium systems. It supports 6-month historical data logging, Excel export, and scene automation based on sensor readings. Users can set thresholds to trigger on/off actions or receive alerts when conditions exceed safe limits.

The device is DIN rail mountable, making it suitable for integration into electrical distribution boards. It’s housed in a sleek white enclosure with a built-in LCD screen that displays real-time temperature, humidity, and device status.

Key Features

• Supports up to 20A load for high-power appliances
• Real-time temperature and humidity monitoring
• LCD screen for local data display
• RJ9 sensor port (hot-pluggable)
• Compatible with THS01, DS18B20, MS01 sensors
• 6-month data history with Excel export
• Wi-Fi connectivity with LAN fallback
• Voice control via Alexa and Google Assistant
• Scene automation, timers, and threshold alerts
• DIN rail compatible for easy installation

Technical Specifications

• Model: Sonoff TH20 Elite
• Chipset: ESP32
• Max Load: 20A
• Voltage Range: 100–240V AC
• Sensor Port: RJ9 (supports THS01, DS18B20, MS01)
• Display: LCD screen
• Connectivity: Wi-Fi, LAN
• App Support: eWeLink
• Voice Assistants: Alexa, Google Assistant
• Data Export: Excel (.xlsx), 6-month history
• Dimensions: 98 mm x 54 mm x 28 mm
• Installation: DIN rail compatible
• Application: Smart climate automation and high-load control
• Colour: White
