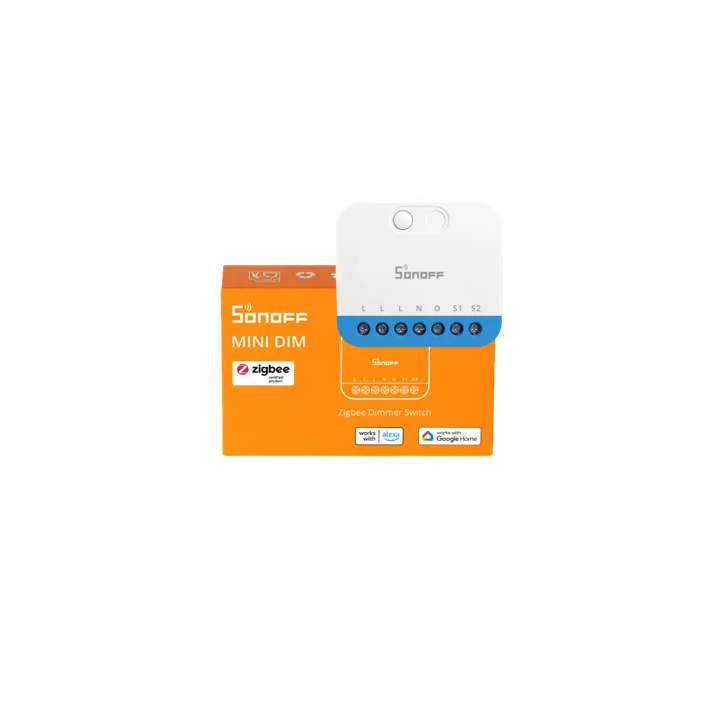

Sonoff Dimmer (Zigbee)

Engineered for stable dimming performance, the Sonoff Zigbee Dimmer uses trailing-edge technology to reduce flicker and extend lamp life. It connects to Zigbee hubs for local, low-latency control, ensuring reliability even without internet access. The device also supports manual calibration to optimize dimming ranges for different lamp types. Safety features such as overheat protection and automatic cut-off enhance durability and user confidence.

Key Features

• Zigbee 3.0 protocol: Reliable, low-latency local control.
• Wide lamp compatibility: Dimmable LEDs, incandescent, halogen, and electronic transformers.
• Trailing-edge dimming: Smooth, flicker-free brightness adjustment.
• Manual/automatic calibration: Optimizes dimming range for different lamps.
• Overheat protection: Automatically cuts power if temperatures rise too high.
• Compact design: Fits standard wall switch boxes.
• App and voice control: Works with eWeLink, SmartThings, Home Assistant, Alexa, and Google Assistant.

Technical Specifications

• Model: Sonoff Zigbee Dimmer
• Voltage Input: 100–240V AC, 50/60Hz
• Max Load: LED: up to 200VA, Incandescent/Halogen: up to 400W, Electronic Transformer: up to 200W
• Wireless Standard: Zigbee 3.0
• Dimming Technology: Trailing-edge dimming
• Calibration: Automatic/manual
• Safety Features: Overheat protection, automatic cut-off
• Dimensions: 54 × 45 × 24 mm (approx.)
• Weight: ~52 g
• Compatibility: eWeLink, SmartThings, Home Assistant, Alexa, Google Assistant
• Installation: Fits standard wall switch boxes
• Operating Temperature: –10°C to +40°C
• Colour: White
