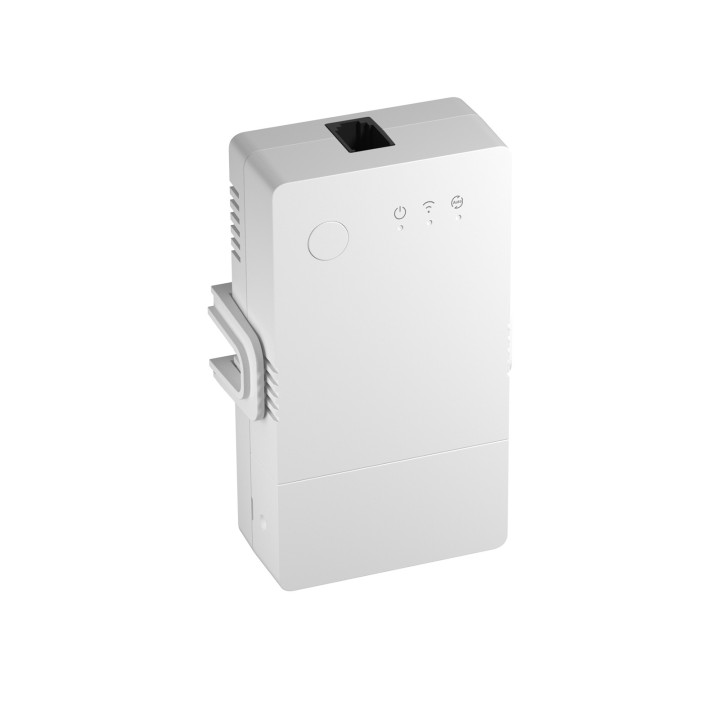

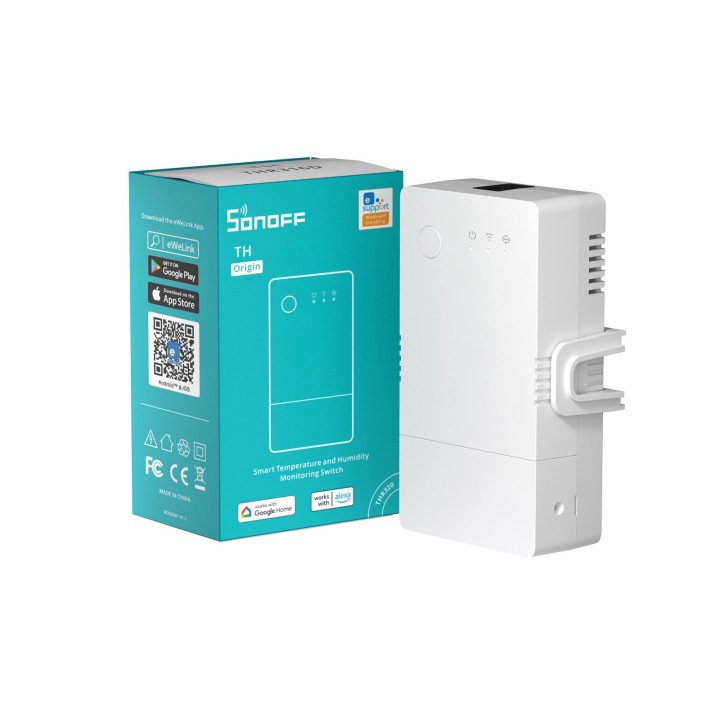

Sonoff TH16 Origin Temp and Humidity Switch
R355,00
The Sonoff TH16 Origin is a Wi-Fi-enabled smart switch that monitors temperature and humidity using external sensors and automates appliances based on preset thresholds. It supports up to 16A of current, features an ESP32 chip for faster performance, and integrates with the eWeLink app, Alexa, and Google Assistant for full smart home control.
In Stock
This device is an upgraded version of the original TH16, now featuring an RJ9 sensor port for hot-pluggable sensors like the THS01 (temp & humidity), DS18B20 (waterproof temp), and MS01 (soil moisture). It’s ideal for climate-sensitive automation in greenhouses, aquariums, and heating systems.
The TH16 Origin allows users to set temperature and humidity thresholds that trigger on/off actions or alerts. It supports scene automation, timers, and schedules, and stores 6 months of historical data, which can be exported to Excel for analysis.
It connects directly to Wi-Fi (no hub required), supports LAN control for offline operation, and is DIN rail compatible for easy installation in electrical enclosures.
Key Features
- Supports up to 16A load for medium-power appliances
- Real-time temperature and humidity monitoring
- RJ9 sensor port (hot-pluggable)
- Compatible with THS01, DS18B20, MS01 sensors
- 6-month data history with Excel export
- Wi-Fi connectivity with LAN fallback
- Voice control via Alexa and Google Assistant
- Scene automation, timers, and threshold alerts
- DIN rail compatible
Technical Specifications
- Model: Sonoff TH16 Origin
- Chipset: ESP32
- Max Load: 16A
- Voltage Range: 100–240V AC
- Sensor Port: RJ9 (supports THS01, DS18B20, MS01)
- Automation Programs: Up to 8
- Connectivity: Wi-Fi, LAN
- App Support: eWeLink
- Voice Assistants: Alexa, Google Assistant
- Data Export: Excel (.xlsx), 6-month history
- Dimensions: 98 mm x 54 mm x 28 mm
- Installation: DIN rail compatible
- Application: Smart climate automation and appliance control
- Colour: White
