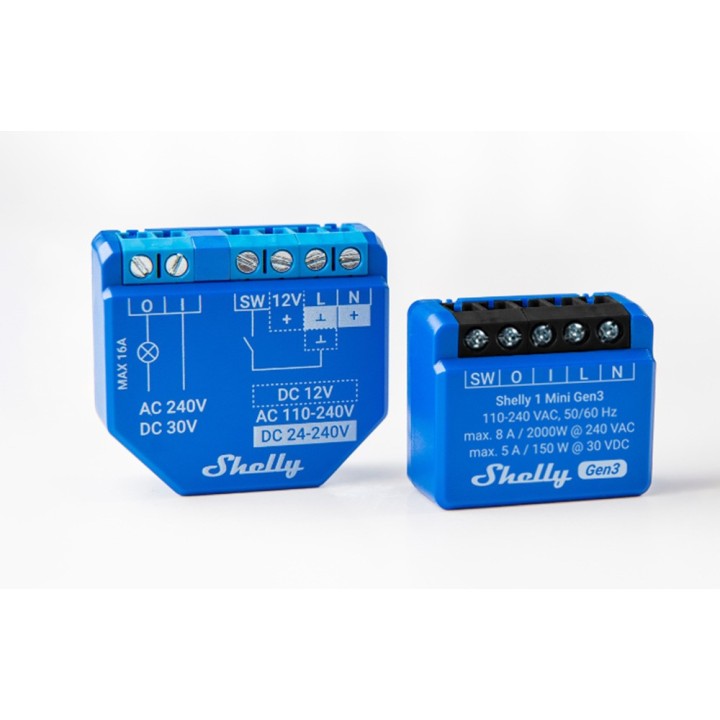

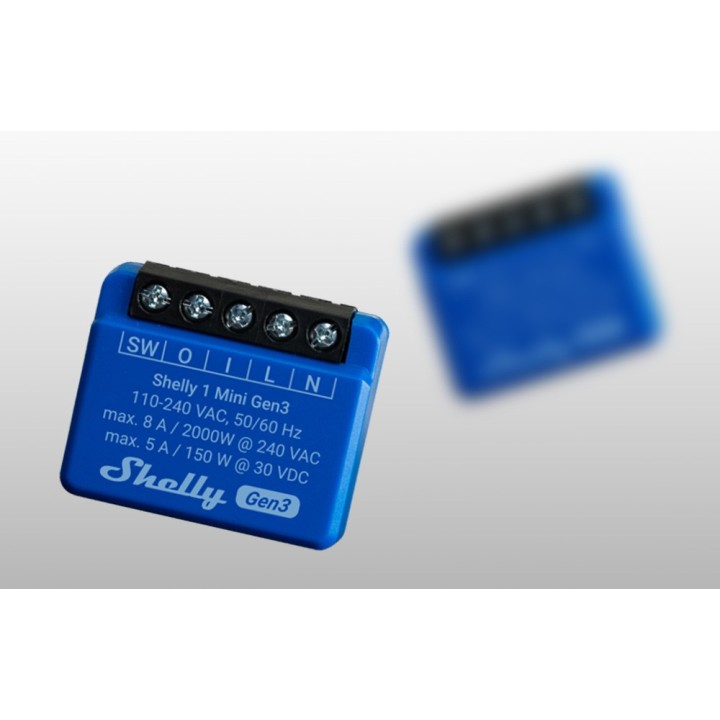

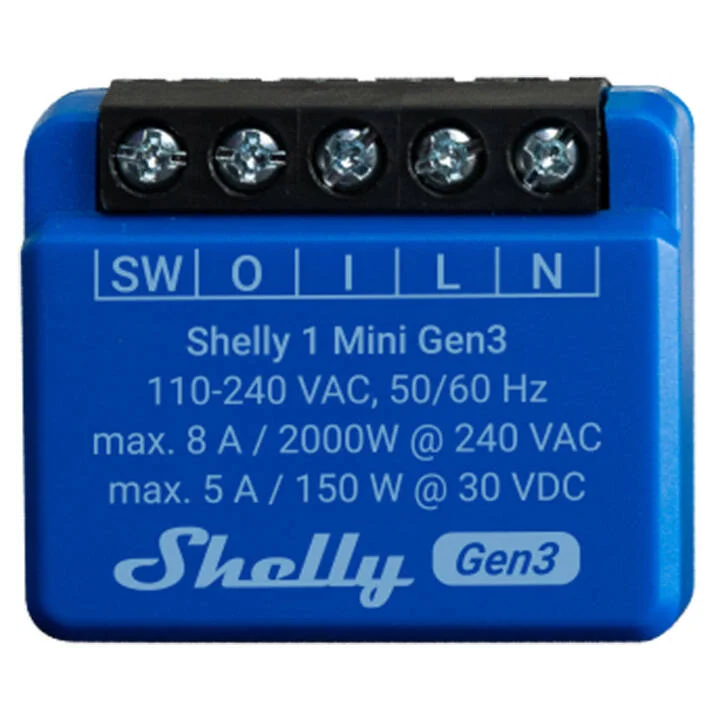

Shelly Smart Mini Wi-Fi Relay Gen3 (1 Channel, 8A)
R410,00
The Shelly Smart Mini Wi-Fi Relay Gen 3 (1 channel, 8 A) is a compact, powerful smart switch designed for easy retrofitting into existing electrical systems, offering seamless integration with major smart home platforms and voice assistants. It supports up to 8 A load, features dry contacts, and doubles as a Wi-Fi range extender and Bluetooth gateway.
The Shelly 1 Mini Gen3 is one of the smallest Wi-Fi-operated relay switches available, enabling smart control of lights, garage doors, irrigation systems, and other appliances. Its compact design allows installation behind wall switches or sockets, making it ideal for retrofits without requiring a hub.
In Stock
Shelly Smart Mini Wi-Fi Relay Gen 3 is built on the new ESP Shelly processor with increased flash memory, ensuring faster performance and improved durability. It provides potential-free dry contacts, making it versatile for controlling different types of circuits. With support for Wi-Fi (2.4 GHz) and Bluetooth, it can act as a gateway and range extender. The device integrates with Shelly Smart Control App, Alexa, Google Home, Home Assistant, and supports advanced protocols like MQTT, Webhooks, HTTPS, UDP, and KNXnet/IP.
Key Features
- Compact size – fits behind wall switches and sockets.
- 1 channel, 8 A max load – suitable for lights, appliances, and automation.
- Dry contacts (potential-free) – allows flexible circuit control.
- Wi-Fi range extender & Bluetooth gateway – improves connectivity.
- No hub required – direct control via app or voice assistants.
- Wide compatibility – works with Alexa, Google Home, Home Assistant, and more.
- Advanced integrations – supports scripting, MQTT, WebSocket, HTTPS, TLS, and custom certificates.
- Improved durability – stronger terminals and upgraded processor.
Technical Specifications
- Model:Â Shelly 1 Mini Gen3
- Channels:Â 1
- Max Current:Â 8 A at 240 VAC / 5 A at 30 VDC
- Max Power (AC):Â 2000 W
- Max Power (DC):Â 150 W
- Relay Type:Â Dry contact (potential-free)
- Connectivity:Â Wi-Fi 2.4 GHz, Bluetooth
- Protocols Supported:Â MQTT, Webhooks, HTTPS, UDP, TLS, KNXnet/IP
- Control Options:Â Shelly Smart Control App, Alexa, Google Home, Home Assistant
- Mounting:Â Fits behind wall switches/sockets
- Dimensions:Â 29 mm x 35 mm x 16 mm
- Processor:Â ESP Shelly (Gen3, upgraded flash memory)
- Safety:Â Improved terminal durability
- Colour: White
