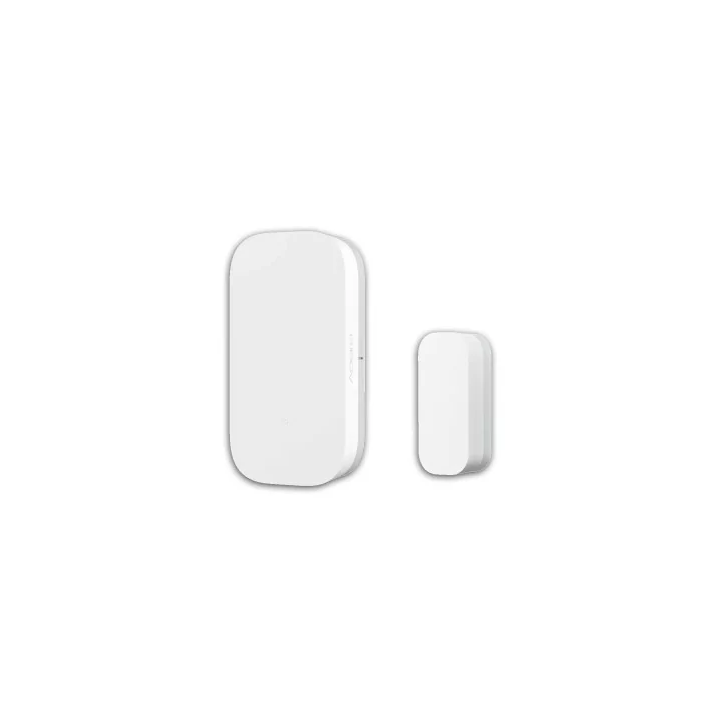

Aqara Sensor Door and Window Contact T1

This sensor uses a high-precision reed switch to detect whether a door or window is open or closed. It communicates via Zigbee 3.0, ensuring fast, stable, and secure connectivity with Aqara hubs and other Zigbee-compatible controllers. Its compact design makes it easy to install with adhesive stickers, while its low-power CR1632 battery ensures long-lasting performance.

Key Features

• Zigbee 3.0 compatibility: Works with Aqara hubs and third-party Zigbee ecosystems.
• Open/closed detection: Monitors doors, windows, drawers, and closets.
• High-precision reed switch: Accurate detection of status changes.
• Smart automations: Trigger lights, alarms, or HVAC systems based on sensor activity.
• Compact design: Discreet installation with adhesive backing.
• Low power consumption: Long battery life with CR1632 cell.

Technical Specifications

• Model: DW-S03D
• Battery: CR1632
• Wireless Protocols: Zigbee 3.0
• Maximum Detection Distance: 22 mm
• Dimensions: 41 × 22 × 11 mm (1.61 × 0.87 × 0.43 in.)
• Operating Humidity: 0–95% RH, non-condensing
• Operating Temperature: -10 °C to 45 °C (14 °F to 113 °F)
• Colour: White

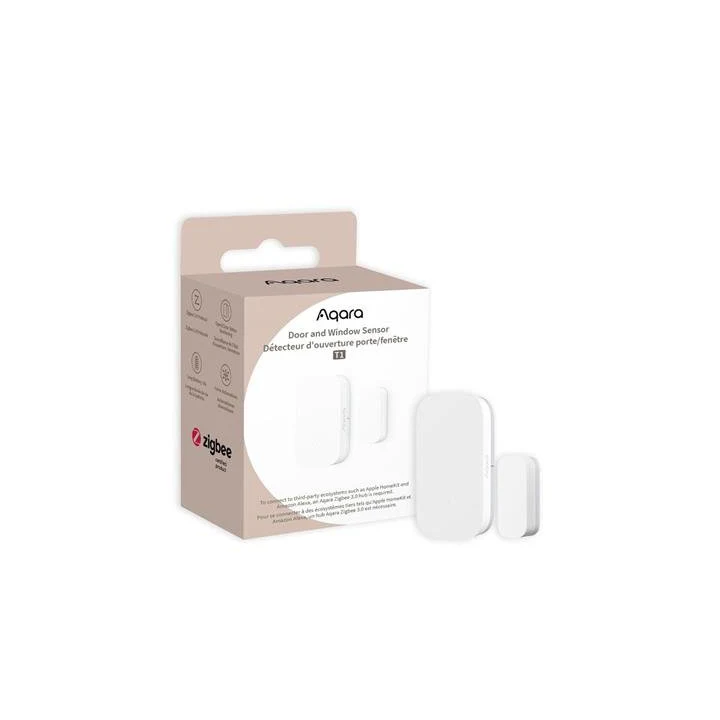

• In the Box: Sensor unit (with sticker) ×1, magnet unit ×1, user manual ×1
